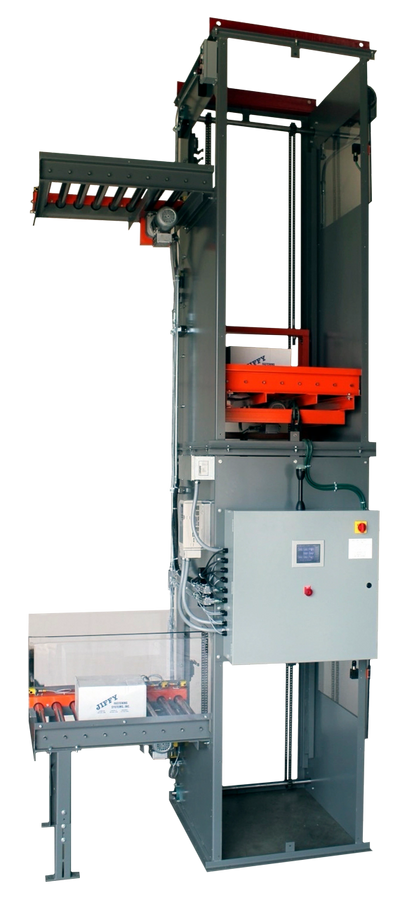

Reciprocating Vertical Lift

General Information

  • The R-SERIES Reciprocating Vertical Lift is a heavy duty electromechanical reciprocating vertical lift utilizing two (2) or (4) lifting chains to safely lift the carriage.
  • Carriage rollers are standard chain driven live rollers (CDLR). The R-SERIES is capable of multiple level loading and unloading.

Control Features

  • The control panel includes a 6” touch screen and PLC to control the operation of the Reciprocating Vertical Lift auto and manual functions. This provides you with superior command of the equipment. If a jam occurs, the display lists the exact reason for the jam.
  • Custom buttons and other information easily added depending on your requirements.
  • A multi color indicator light on top of the unit displays the unit's current state: green for ready, yellow for unit empty (or full), and red for jam condition.
  • All electric with no air required.
  • 24VDC controls for safety.

Mechanical Features

  • The R-SERIES is capable of loading in the "Z", "C", and 90 degree pattern.
  • Quiet operation a less than 80 dbs.

Video

2020 R-Series Lift

Video

Download

Download a brochure or Price Request Form.

Request Form (pdf)Download
Recriprocating Lift (pdf)Download
